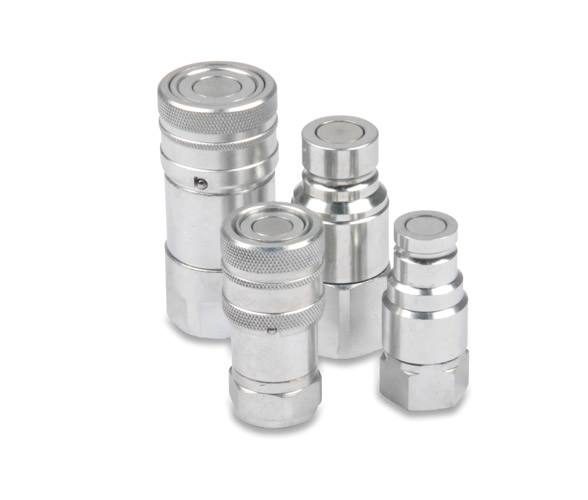

Series HPF — ISO 16028 Flat-Face
The standardised, leak-free coupling system to ISO 16028 for demanding hydraulic applications — test benches, plastics industry, core pulls.
Mono couplings — Hydraulics
The standardised, leak-free coupling system to ISO 16028 for demanding hydraulic applications — test benches, plastics industry, core pulls.
Leak-free and flat-face to ISO 16028, optimised flow, one-hand operation, disconnection lock against unintentional release. Max. pressure per size: DN 6 400 bar · DN 10 375 bar · DN 12 and 16 350 bar · DN 19 300 bar · DN 25 250 bar. Optionally available: colour coding (R/B), stainless steel (VA). Seal alternatively in fluorocarbon (FKM/Viton V). Please observe the operating instructions for hydraulic couplings.
Multiple selections per group possible. Categories without matches are hidden automatically while a filter is active.
HPF 06 FFB 14 · HPF 06 FNB 14 · HPF 10 FFB 38 · HPF 10 FNB 38 · HPF 10 FFB 12 · HPF 10 FNB 12 · HPF 12 FFB 12 · HPF 12 FNB 12 · HPF 16 FFB 34 · HPF 16 FNB 34 · HPF 19 FFB 10 · HPF 19 FNB 10 · HPF 25 FFB 10 · HPF 25 FNB 10 · HPF 06 MFB 14 · HPF 06 MNB 14 · HPF 10 MFB 38 · HPF 10 MNB 38 · HPF 10 MFB 12 · HPF 10 MNB 12 · HPF 12 MFB 12 · HPF 12 MNB 12 · HPF 16 MFB 34 · HPF 16 MNB 34 · HPF 19 MFB 10 · HPF 19 MNB 10 · HPF 25 MFB 10 · HPF 25 MNB 10
